High Energy Density Cells

Shmuel De-Leon Energy is selling special li-Ion high energy density cells made in China – Contact us for cell data sheet and an offer.

Cell Specification Sheet:

  • Pouch Cell
  • 383 Wh/Kg, 782 Wh/l
  • Charge Cut-Off Voltage 4.2V
  • Discharge Cut-Off Voltage 2.5V
  • Nominal Voltage 3.4V
  • Standard Charge Condition 0.2C CC to 4.2V, Then CV to 0.02C Cut-off
  • Standard Discharge Condition 0.2C Discharge to 2.5V Cut-Off Voltage
  • Capacity 11600mAh with 0.2C Discharge
  • Charge Temperature Range 10 to 55 Deg C
  • Discharge Temperature Range -20 to 55 Deg C
  • Rate Discharge 0.5C Discharge, RT, >=95%C
  • Rate Discharge 1C Discharge, RT, >=92%C
  • Support 2C Discharge for 5 Min
  • Support 3C Discharge for 2 Min
  • Cycle Life – 150 Cycles, 0.5C Charge/Discharge, 100% D.O.D, RT,  to 80% Nominal Capacity
  • AC Impedance <=20mOhm
  • Weight 103 Grams

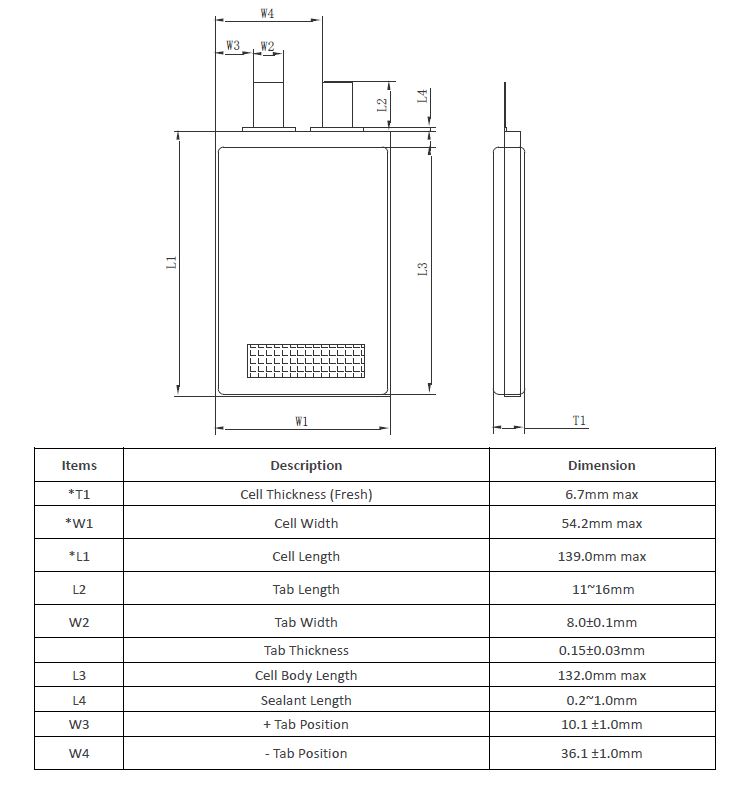

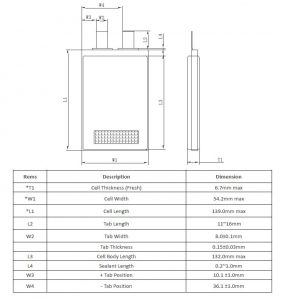

  • Dimensions 6.7mm, 54.2mm, 139mm
